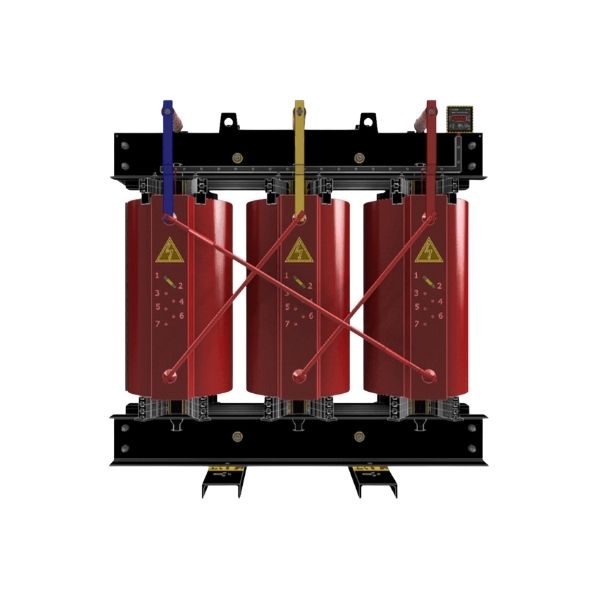

Dry-Type Transformers – 5000 kVA
Transformers whose magnetic core and windings are not immersed in insulating liquid are referred to as dry-type transformers. These transformers contain no oil at all. Their windings are insulated and encapsulated with epoxy resin reinforced with fiberglass, providing effective protection against external factors. Dry-type transformers can operate either in open air or within a gas environment.
Advantages
Require less installation space compared to oil-immersed transformers.
Maintenance-free operation.
Unaffected by ambient humidity.
On-site service and repair are easier than with oil-filled types.
Environmentally friendly, with no risk of oil leakage or pollution.
Production Capacity
Our company manufactures dry-type transformers up to 5000 kVA power and 36 kV voltage levels. Different specifications can be provided according to customer requirements and technical standards.
Technical Information
| Power Ratings: | Up to 5000 kVA, as requested |
| Type: | Dry-Type |
| Voltage Type: | Single-phase AC, Three-phase AC |
| Primary Voltage Ratings: | Up to 36 kV, as requested |
| Cooling Method: | AN, AF |
| Connection Type and Group: |
|
